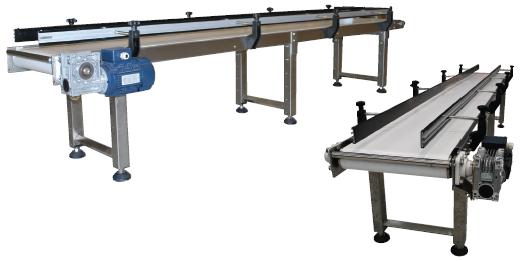

Flat Belt Conveyors
ME New Equipment offers a range of stainless steel food grade flat belt conveyors suitable for most applications.
Dimensions & Specifications
| Model | Dimensions (mm) | Motor/Voltage | Safe Working Load/Mtr |
| CBF400x3000 | 400 (W) x 3000 (L) x 500-900 (H) | 0.25 Kw / 415 Volt | 30Kg/mtr |
| CBF400x6000 | 400 (W) x 6000 (L) x 500-900 (H) | 0.55 Kw / 415 Volt | 30Kg/mtr |
| CBF600x3000 | 600 (W) x 3000 (L) x 500-900 (H) | 0.55 Kw / 415 Volt | 30Kg/mtr |
| CBF600x6000 | 600 (W) x 6000 (L) x 500-900 (H) | 0.75 Kw / 415 Volt | 30Kg/mtr |
 |
 |
 |
 |
Features
- Conveyor constructed from 304 grade stainless steel.
- Adjustable stainless steel legs.
- White PVC 2mm thick food grade belt.
- Adjustable guide rails.
- Stainless steel end rollers with food grade bearings.
Optional Features
- Electronic variable speed drive.
- Electrical DOL starter and power lead.
-

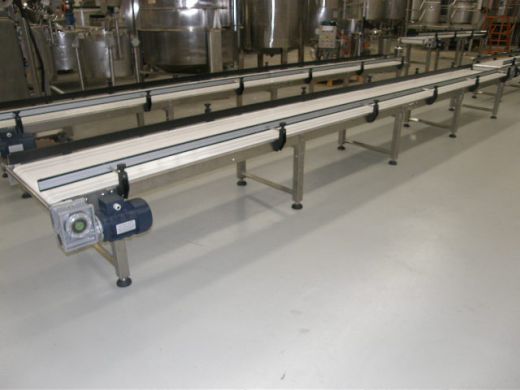

Flat Belt Conveyor 600mm x 6000mm Item No: CBF600x6000 -
-

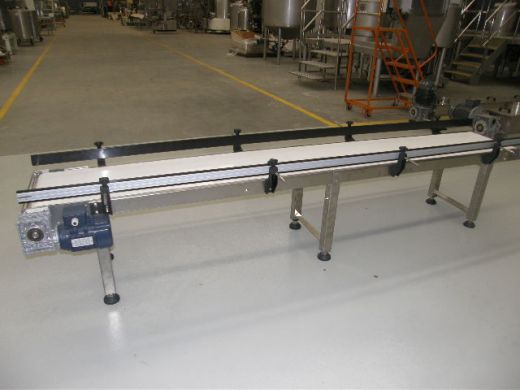

Flat Belt Conveyor 600mm x 3000mm Item No: CBF600x3000 -
-

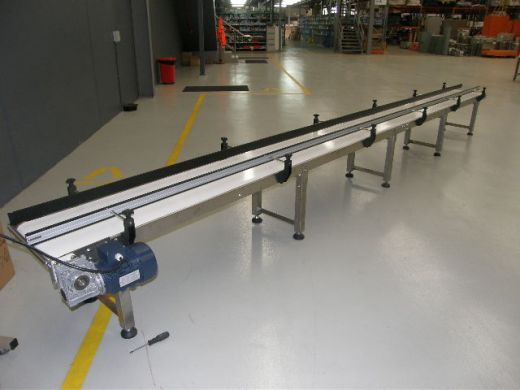

Flat Belt Conveyor 400mm x 6000mm Item No: CBF400x6000 -
-

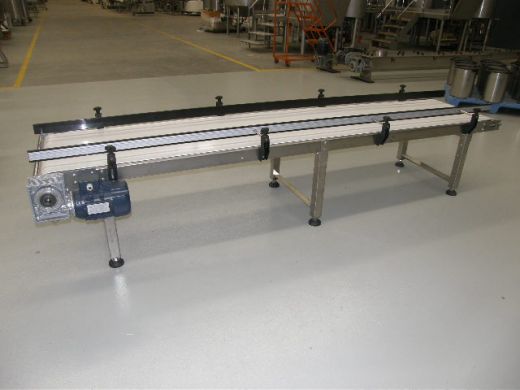

Flat Belt Conveyor 400mm x 3000mm Item No: CBF400x3000 -
