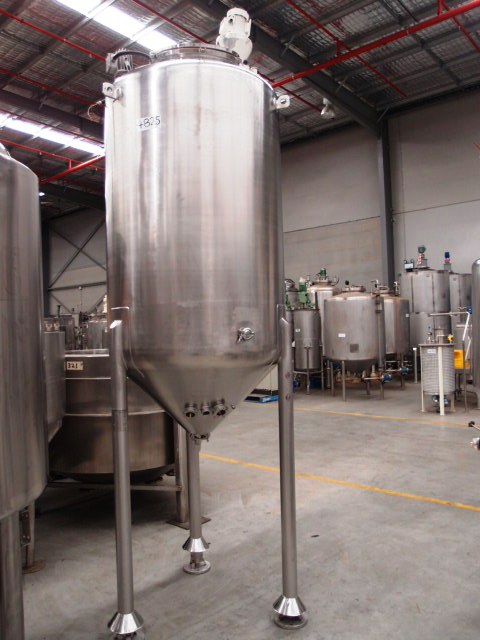

Unit is a stainless steel mixing vessel and is capable of taking vacuum & slight pressure.
Capacity: 1,500Lt.
Dimension: 1100mm Dia x 1600mm H.
Vessel Working Pressure: 7 KPA.
Design Pressure: 8.4/-8.4 KPA.
Test Pressure: 13 KPA.
Working Temperature: 15-90 Deg C.
Working Vacuum: -7 KPA.
Design Code: AS1210, Class 3.

The vessel has a dished top with a hinged manway.
Glass inspection port with lid.
Top offset electric geared agitator (0.55kw, 415V).
Conical bottom with 50mm dia centre discharge.
The vessel is internally polished and is of a pharmaceutical standard.
Overall height: 4000mm.
